Memory Map

Interface	Type
CPU_SUBSYSTEM	AXI
CPU_SUBSYSTEM	APB
xSPI	AXI
xSPI	APB
I2C	AXI4Lite
QSPI	AXI4

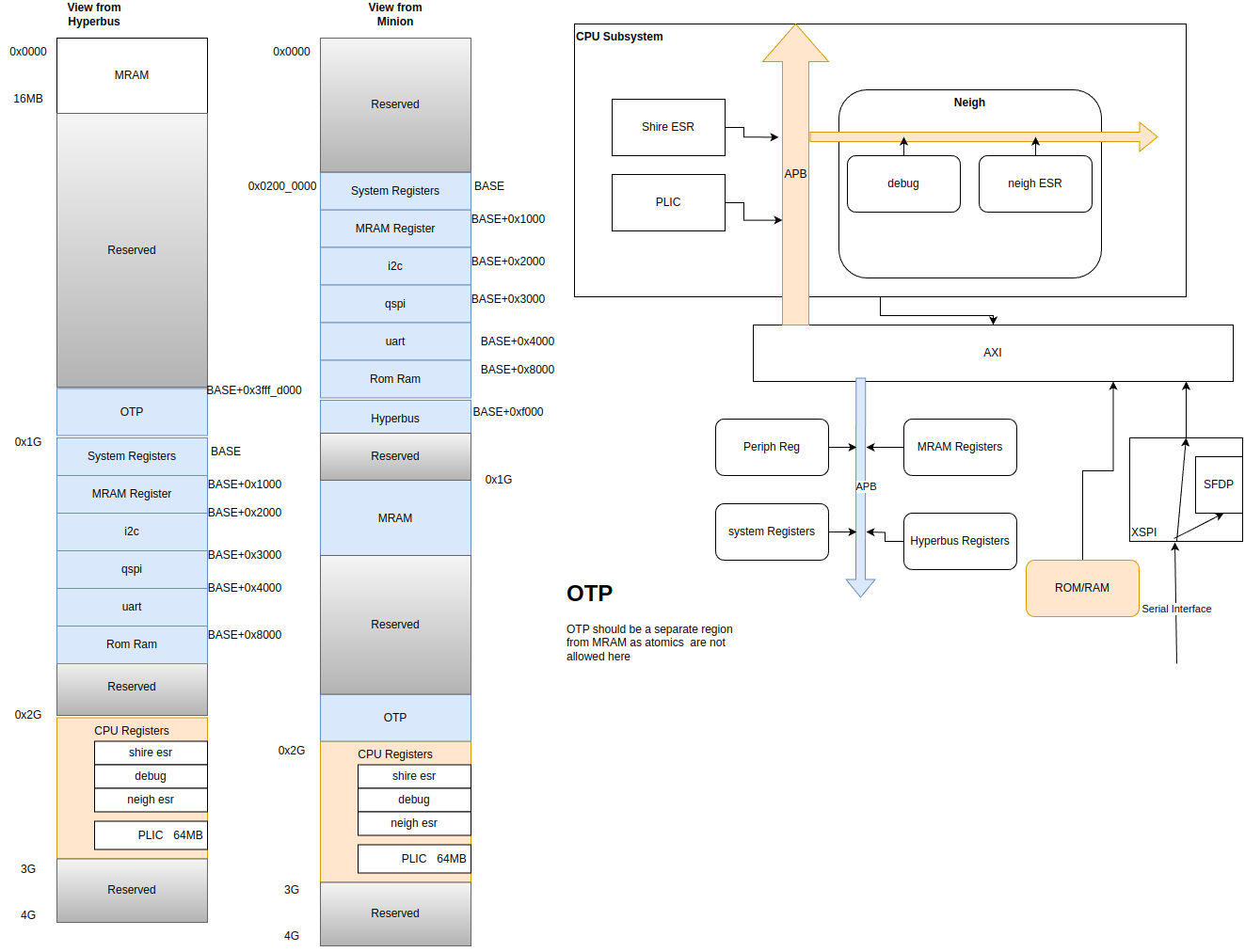

Interconnect: Transaction Initiators and Targets

There are 3 Major Transaction Initiators in the System.

1. xSPI
2. CPU
3. UART

Initiator	Interface	Targets Accessible
xSPI	AXI4	MRAM, SRAM, System Registers, Peripheral Registers, HyperBusRegisters, CPURegisters, MRAMRegisters
CPU	AHB-Lite	MRAM, SRAM, Bootrom, System Registers, Peripheral Registers, HyperBusRegisters, CPURegisters, MRAMRegisters
UART	AXI4	MRAM, SystemRegisters

This device can be used as either an Edge AI device or as a simple Flash replacement. The memory Map seen by CPU and UART (Edge AI Mode) is different than the memory map seen by xSPI( Flash replacement device)

CPU and UART Memory Map.

Offset	Identifier	Name
0x02000000	system_registers	System Registers
0x02001000	mram_registers	Erbium MRAM Block Test Register map.
0x02002000	i2c_registers	—
0x02003000	qspi_registers	—
0x02004000	uart_registers	—
0x0200A000	SRAM	—
0x0200F000	xspi_registers	sccr
0x0E000000	nic_configuration_space	—
0x40000000	mram	MRAM
0x80000000	cpu_registers	—

xSPI Memory Map.

Customers accessing Erbium through xSPI interface are expected to use it as a MRAM Memory device. In such a case it is natural to assume the memory starts from address 0. Hence in Hyperbus case the addressmap is rearranged to facilitate this world view.

Offset	Identifier	Name
0x00000000	mram	MRAM
0x0E000000	nic_configuration_space	—
0x40000000	system_registers	System Registers
0x40001000	mram_registers	Erbium MRAM Block Test Register map.
0x40002000	i2c_registers	—
0x40003000	qspi_registers	—
0x40004000	uart_registers	—
0x40005000	SRAM	—
0x80000000	cpu_registers	—

Note All Register address spaces are 64 bit aligned.
